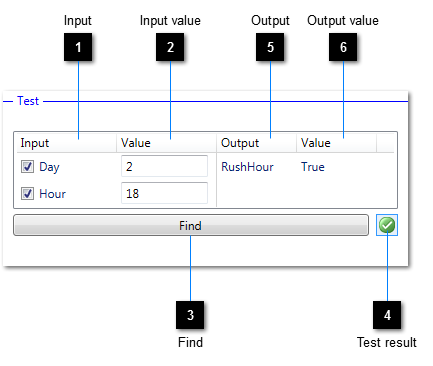

Use this panel to to test your lookup table. None of the edits you make in this panel affects the lookup table itself.
 Input
When inputting values to a lookup table, you do not necessarily need to supply values for all input parameters. Uncheck those parameters for which values are not to be supplied in tests.
|
|
 Input value
Use this field to specify the values of input parameters in tests.
|
|
 Find
Click this button to pass the set of input parameter test values to the lookup table and obtain the result.
|
|
 Test result
This button's graphic indicates the result of a test. A green tick indicates that either a lookup entry was matched with the input parameter test values or the lookup table's default values were returned ( if such values are defined). A red "no entry" symbol indicates that no match was found and the lookup table did not return any default values.
This is a bistate button: when it is in the checked state (as shown here), a matching test will set the selected lookup entry to be the matching entry. You may want to uncheck the button if, for example, you are editing a large lookup table and do not want the currently selected lookup entry to be changed during a test.
|
|
 Output
Lists the lookup table's output parameters.
|
|
 Output value
Lists the output parameter values obtained from the most recent test.
|
|
