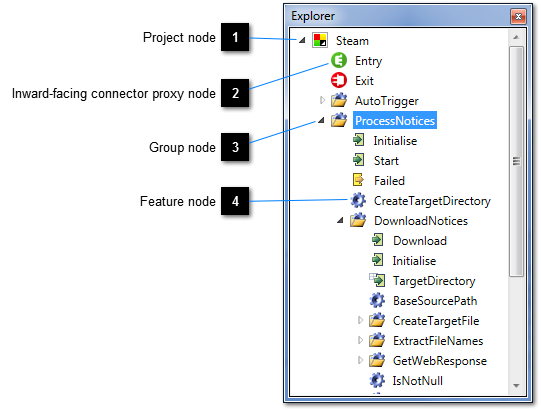

The Explorer illustrates the hierarchical structure of the current project, containing nodes that represent distinct features and connector proxies.  The selected component can be renamed by clicking on it.  Alternatively, right-click on any node to show its context menu, from which other operations are available.  Double-clicking a node will open the containing view and cause its viewport to pan and zoom to the component represented by the node.

The Explorer is shown by selecting View Explorer from the menu bar or by clicking the Explorer button in the Standard toolbar.

1

Project node


Represents either the current project or a project nested within the current project.
2

Inward-facing connector proxy node


This is usually a representation of one of a group's connectors, but facing in towards the group's contained features so as to offer a means of connecting these features to the outside world.
3

Group node


Represents a group of features.
4

Feature node


Represents a feature.
