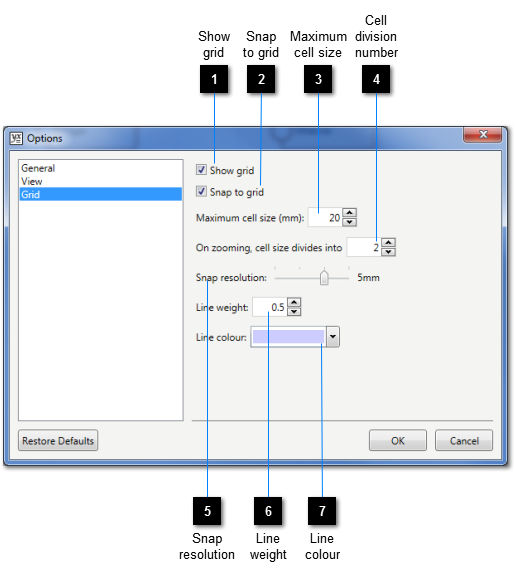

Options - Grid
Show grid
Check this option if you want a grid to be visible on a
view
's design surface.
Top
Snap to grid
Check this option if you want shapes to be snapped to a grid (visible or otherwise) on a
view
's design surface.
Top
Maximum cell size
Grid cells resize themselves to counter the effects of zooming. This option specifies the maximum size (in millimetres) that a grid cell can reach before it is subdivided.
Top
Cell division number
This option specifies the number of cells horizontally and vertically that a cell divides into when its maximum size is reached.
Top
Snap resolution
This option defines the distance between a grid's snap points.
Top
Line weight
This option specifies the thickness of the lines used to render a grid.
Top
Line colour
This option specifies the colour to be used to render grid lines.
