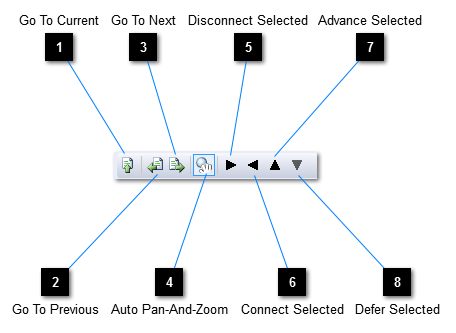

Connection Manager toolbar
 Go To Current
Actions the currently selected item in the Connected list in accordance with the selections for Auto Pan-And-Zoom.
|
|
 Go To Previous
Selects the previous item in the Connected list in the list and actions it in accordance with the selections for Auto Pan-And-Zoom.
|
|
 Go To Next
Selects the next item in the Connected list in the list and actions it in accordance with the selections for Auto Pan-And-Zoom.
|
|
 Auto Pan-And-Zoom
When selected, causes the actioned connection to be brought into view and scaled such that it fills the viewport.
|
|
 Disconnect Selected
Breaks connections between the selected connector and those connectors selected in the Connected list.
|
|
 Connect Selected
Creates connections between the selected connector and those connectors selected in the Available To Connect To list.
|
|
 Advance Selected
Promotes those connectors selected in the Connected list such that connections between them and the selected socket are triggered earlier in the socket's trigger sequence.
|
|
 Defer Selected
Demotes those connectors selected in the Connected list such that connections between them and the selected socket are triggered later in the socket's trigger sequence.
|
|
