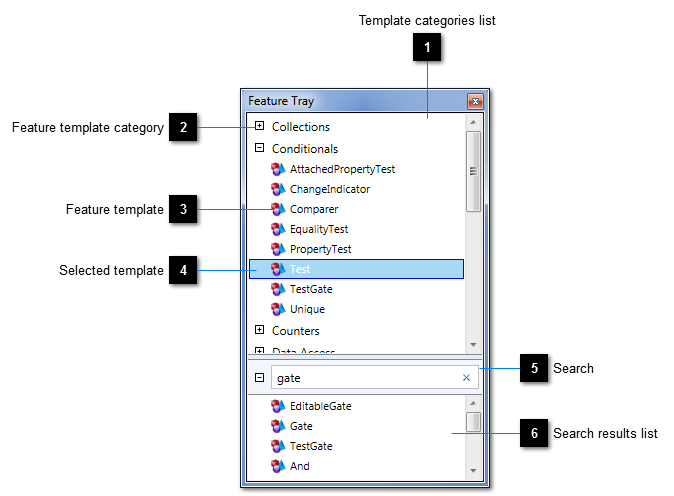

The Feature Tray contains all feature templates loaded into the Editor at start-up. These templates include all out-of-the-box templates installed with the Absyntax framework plus any detected third-party add-ins.
Select a template, then either drag it onto the design surface or, with the
Feature Tray Tool selected, click on the design surface at the location where a new feature is to be added.
The Feature Tray is shown by selecting View → Feature Tray from the menu bar.
 Template categories list
The list of all known feature template categories is presented here.
|
|
 Feature template category
Templates are categorised for ease of access. A template may appear in any number of categories.
|
|
 Feature template
A feature template contains all the information necessary to create a feature on the design surface. Hover the mouse over a template to show a tool-tip containing its description.
|
|
 Selected template
The selected feature template is used by the Feature Tray Tool when creating new features on the design surface.
|
|
 Search
Find feature templates using the search facility at the bottom of the Feature Tray. Words entered here are matched with a template's category, name, description and any culture-specific keywords associated with the template.
|
|
 Search results list
This list contains the feature templates that are deemed to match the search words.
|
|
